aero365 – Advantages

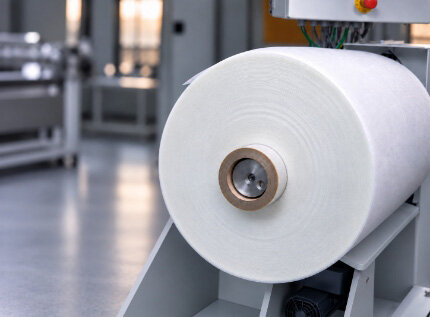

aero365 is based on an inorganic insulation paper filled with silica aerogel. The material combines the properties of a flexible nonwoven with the very low thermal conductivity of an aerogel. This way, aero365 is suitable for insulation applications in which standard materials reach their limits. Depending on the specific application, aero365 may be used as a single layer or in multi-layer structures. Complex geometries can be achieved by ways of conventional 3D hot molding.
- High Insulation Performance at Low Thickness:
aero365 features a thermal conductivity of 0.020-0.026 W/m·K [0,1387 bis 0,1803 BTU·in/(hr·ft²·°F)] at ambient temperature. Featuring a thickness ranging from 1 to 3mm, the aerogel insulation material enables high insulation performance even where installation space is limited. - Less Material, Lower Cost:
given the high insulation performance, fewer layers of insulation material may be needed, offering the potential to reduce material use and cost. - Low Weight:
with basis weights ranging from 75 to 160g/m², areo365 is specifically suitable for applications calling for low weight. - Flexible Converting:

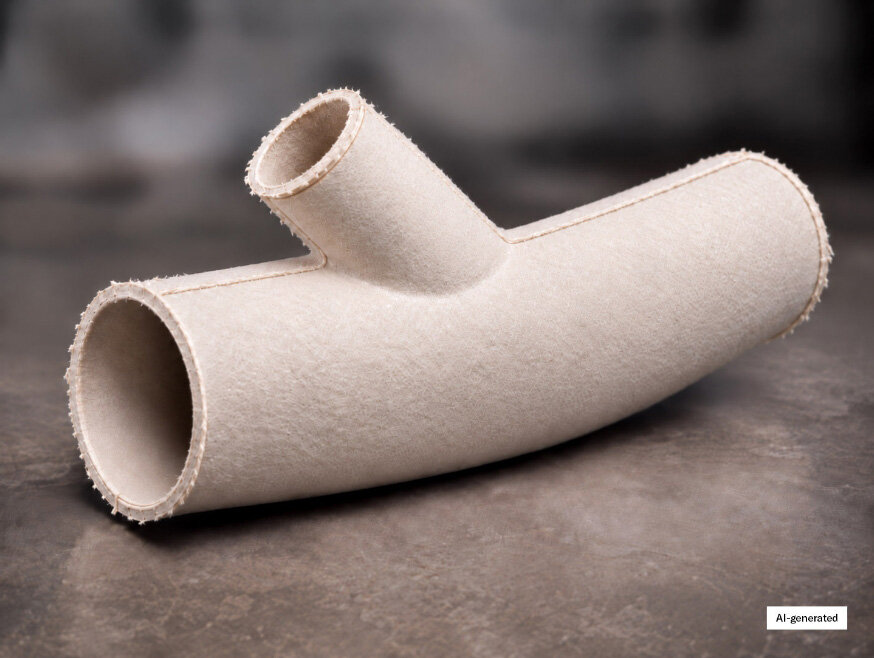

to achieve complex geometries, aero365 aerogel nonwoven can be 3D hot molded and be integrated into multi-layer structures, enabling specific thermal insulation solutions. - High Thermal and Fire Resistance:
depending on the specific variant, areo365 is suitable for applications at ambient temperatures or up to 300° C (572° F). - Easy to Convert:
the textile-like structure allows for easy converting with low dust generation. - Production and Supply Chain based in Germany
Some Applications for aero365
aero365 is suitable for a variety of applications demanding thermal and/ or electrical insulation as well as reliable heat shielding. In particular where installation space is limited, aero365 offers opportunities for compact aerogel insulations using a thin high-performance insulant.
Automotive Industry

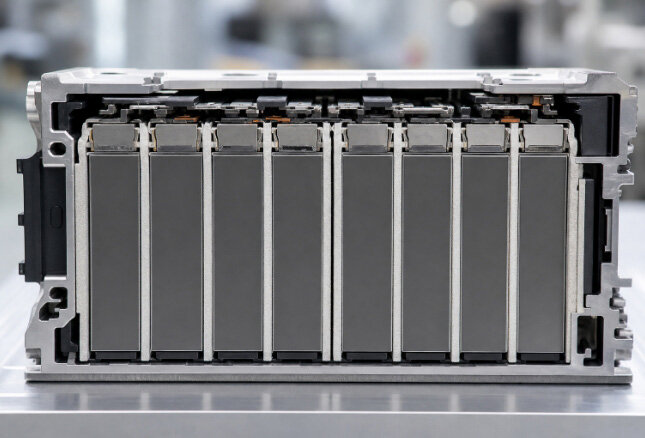

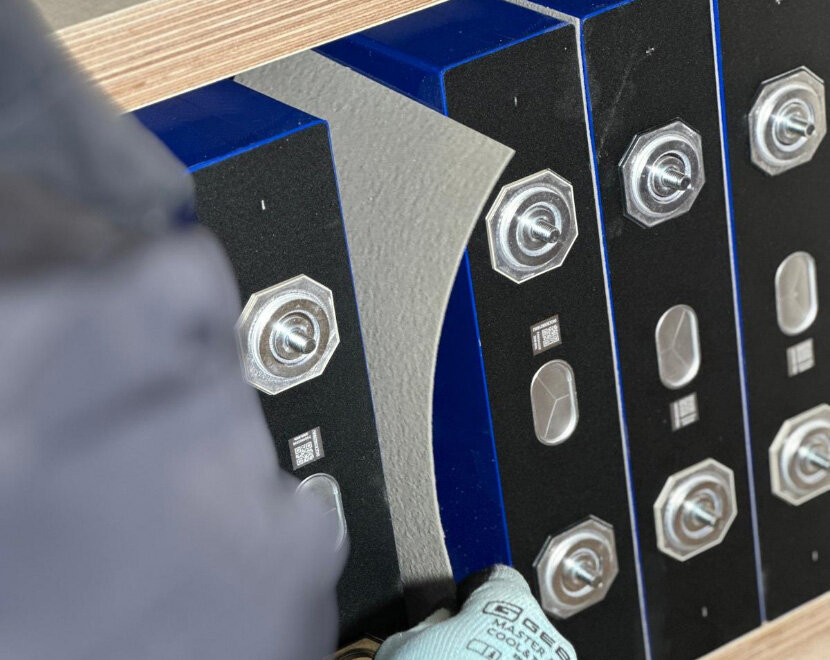

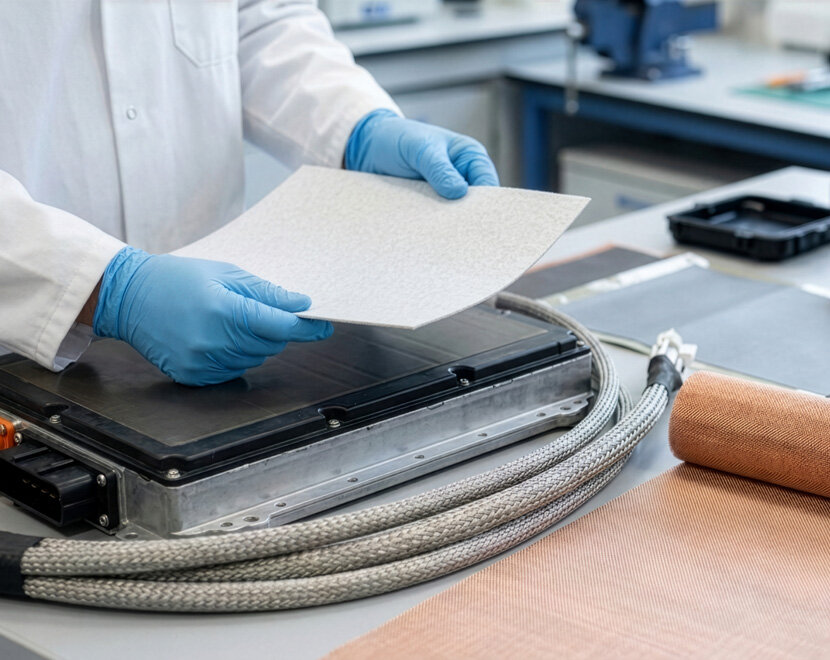

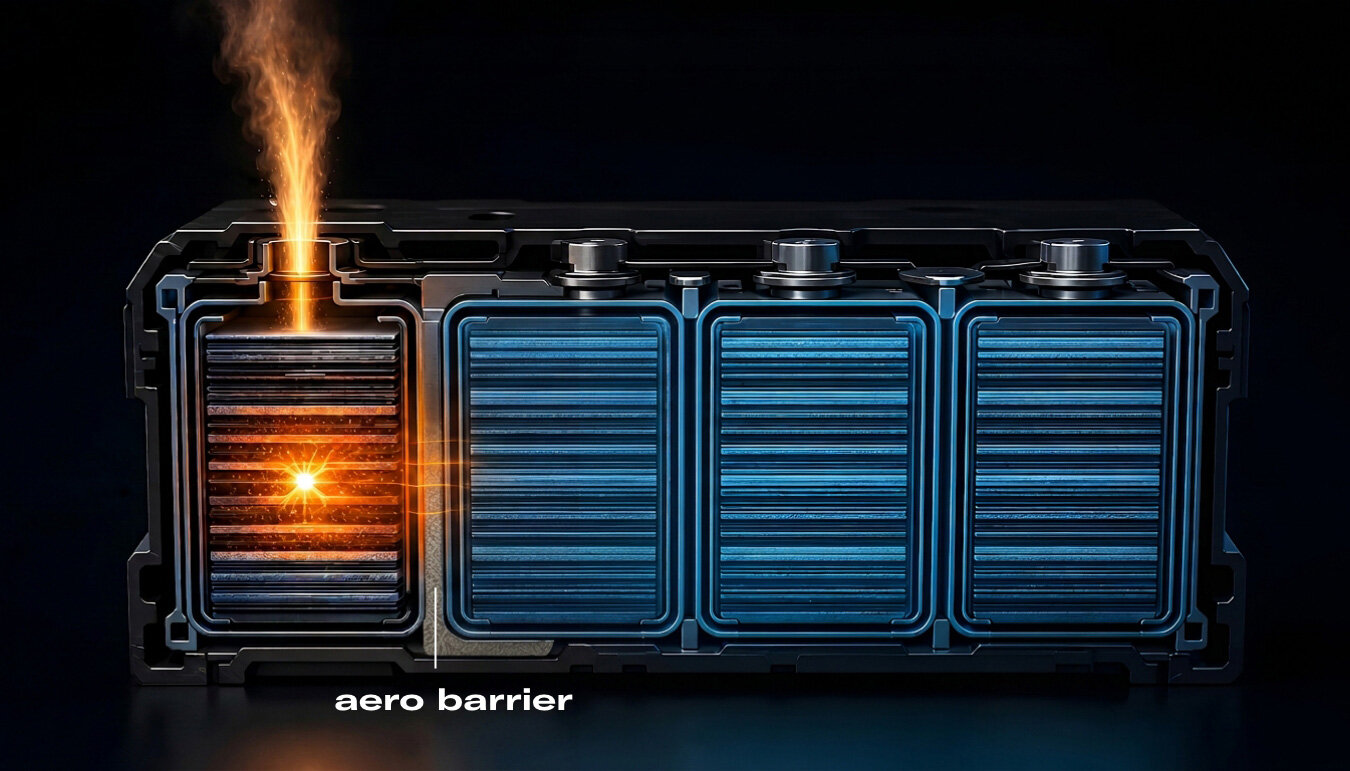

In the automotive industry, aero365 can be used for thermal management in vehicles, battery insulation and battery fire protection. Applications may include cell spacers, battery enclosures and covers, thermal insulation, and heat shields - also for exhaust and drive-train components. aero365 also has applications in automotive acoustics.
Rail Transportation

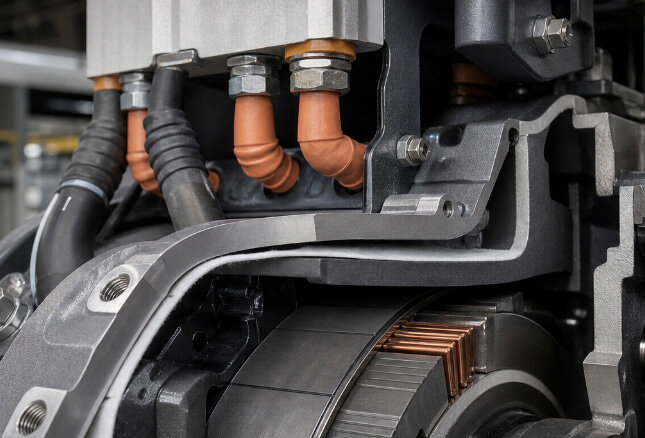

In rail transportation, aero 365 can be used for thermal and electrical insulation in the passenger areas, drive components, and electrical systems. Again, it has applications in the field of vehicle acoustics.
Construction

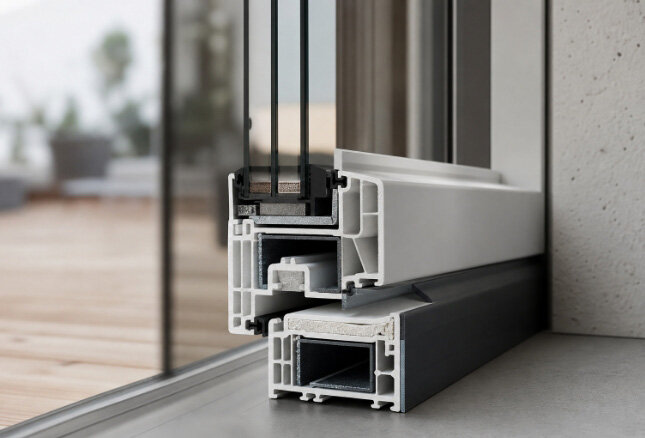

In the field of construction, aero365 can be used as a thin, aero-gel based insulant for a variety of insulation applications. These may include thermal insulation, window frames, fire doors, and HVAC systems.

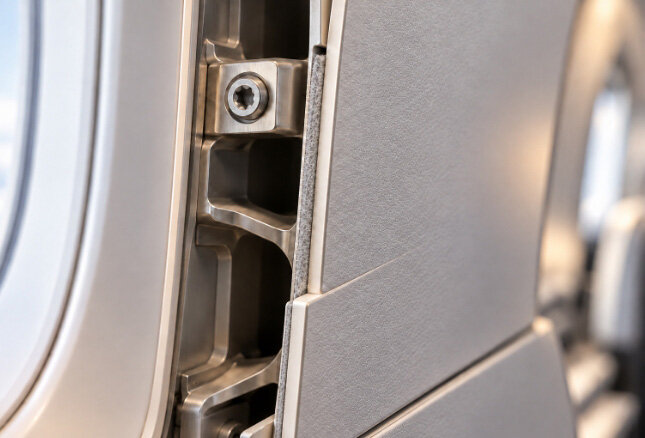

Aerospace and Defense
In aerospace and defense, aero365 can be used for thermal and electrical insulation. Applications include heat shielding, reducing heat signatures, and insulating electrical components. Further applications may include radomes and antennas.
Get to know aero365!
In our webinar “Introducing aero365 and Its Applications – A High-Performing Space-Saving Insulation Paper at Surprisingly Reasonable Prices”, we'll introduce you to aero365 and give you an overview of the properties, the advantages, and the potential applications of this aerogel nonwoven.
Sandler & Phoenix Non Woven
Sandler and Phoenix Non Woven bring together complementary areas of expertise: Sandler has decades of experience in the development and production of nonwovens, while Phoenix Non Woven has specialized expertise in wetlaid technology and with technical materials.
This gives you access to specialized know-how related to aero365 aerogel nonwoven. Join our specialists to discuss the suitability of aero365 for your application, your technical requirements, and the installation space available.
